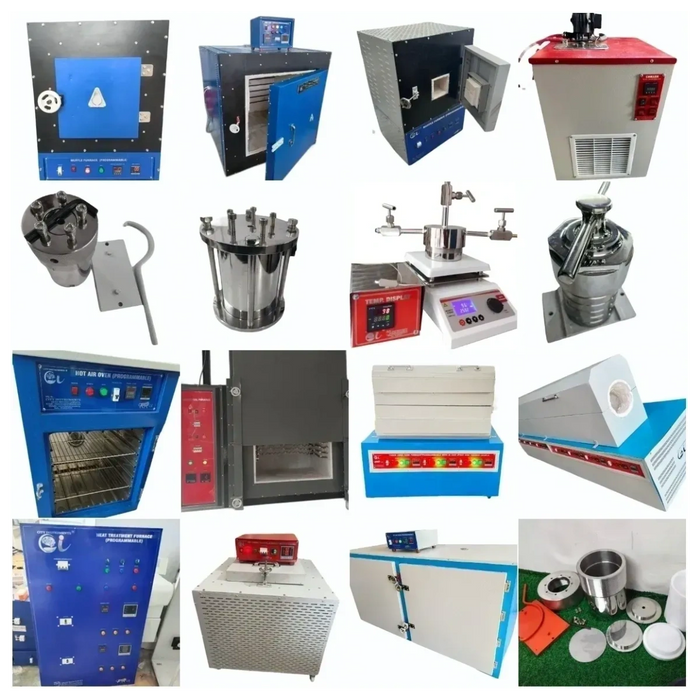

OUR PRODUCT

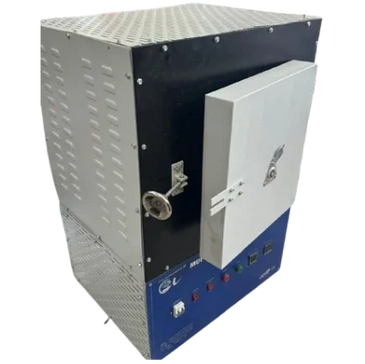

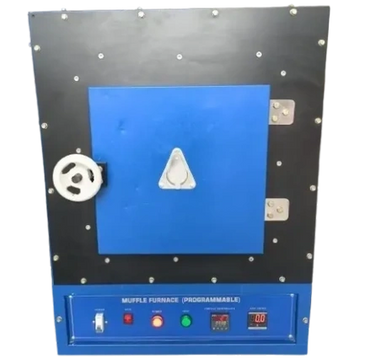

MUFFLE FURNACE (1700 ºC)
MUFFLE FURNACE (1400 ºC)
MUFFLE FURNACE (1700 ºC)
MAKE: CITY INSTRUMENTS
An ISO / CE / NSIC / MSME / GEM /Trade Mark / IEC /Certified Company
Technical Specifications:
- Model : CIMF-17/Prog.
- Maximum Temp. : 1700ºC
- Working Temp. : 1600ºC
- Temp. Accuracy : ± 1ºC
- Heating Elements : Molybdenum Disilicide (MoSi2) heating elements, easily replaceable.
- Inner Chamber : Ceramic Brick/Board.
- Insulation : Ultra High purity alumina low thermal mass insulation.
- Body & Construction : Made of mild of steel duly Powder Coated/Triple Walled.
- Sensor : Pt / Pt - Rh
- Safety : High Speed Semi Conductor Fuse/Over Current Short Circuit Protection High Temp Alarm.
- Power Supply : 220 volts, single phase AC supply.
MUFFLE FURNACE (1200 ºC)
MUFFLE FURNACE (1400 ºC)
MUFFLE FURNACE (1700 ºC)
MAKE: CITY INSTRUMENTS
An ISO / CE / NSIC / MSME / GEM /Trade Mark / IEC /Certified Company
Technical Specifications:
- Model : CIMF-12/Prog.
- Maximum temp. : 1200º C
- Working Temp. : 1150º C.
- Temp. Accuracy : ± 1ºC
- Heating Element are made of KANTHAL “A1" Wire.
- Inner Chamber : Ceramic Board/Fiber.
- Insulation : Ultra High purity alumina low thermal mass insulation.
- Body & Construction : Made of mild of steel duly Powder Coated/Double Walled.
- Sensor : Cr / Al
- Safety : High Speed Semi Conductor Fuse/Over Current Short Circuit Protection High Temp Alarm
- Power Supply : 220 volts, single phase AC supply.
MUFFLE FURNACE (1400 ºC)
MUFFLE FURNACE (1400 ºC)
MUFFLE FURNACE (1400 ºC)
MAKE: CITY INSTRUMENTS
An ISO / CE / NSIC / MSME / GEM /Trade Mark / IEC /Certified Company
Technical Specifications:
- Model : CIMF-14/Prog.
- Maximum temp. : 1400º C
- Working Temp. 1300º C.
- Temp. Accuracy : ± 1ºC
- Heating Element Silicon Carbide, with end connection, easily replaceable.
- Inner Chamber : Ceramic Board/Board.
- Insulation : Ultra High purity alumina low thermal mass insulation.
- Body & Construction : Made of mild of steel duly Powder Coated/Double Walled.
- Sensor : : Pt / Pt - Rh
- Safety : High Speed Semi Conductor Fuse/Over Current Short Circuit Protection High Temp Alarm
- Power Supply : 220 volts, single phase AC supply.
OUR PRODUCT
MUFFLE FURNACE (1500 ºC)

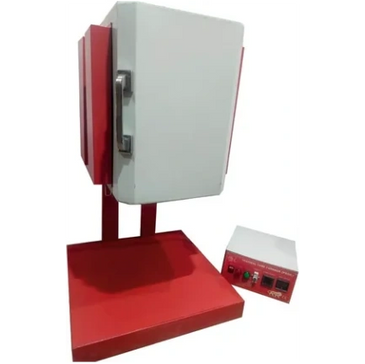

VERTICAL SPLIT TUBE FURNACE (1700 /1400 / 1200 ºC)
VERTICAL SPLIT TUBE FURNACE (1700 /1400 / 1200 ºC)
MAKE: CITY INSTRUMENTS
An ISO / CE / NSIC / MSME / GEM /Trade Mark / IEC /Certified Company
Technical Specifications:
- Model : CIMF-15/Prog.
- Maximum Temp. : 1500º C
- Working Temp. : 1400ºC
- Temp. Accuracy : ± 1ºC
- Heating Elements : Silicon Carbide, with end connection, easily replaceable.
- Inner Chamber : Ceramic Brick/Board.
- Insulation : Ultra High purity alumina low thermal mass insulation.
- Body & Construction : Made of mild of steel duly Powder Coated/Triple Walled.
- Sensor : Pt / Pt - Rh
- Safety : High Speed Semi Conductor Fuse/Over Current Short Circuit Protection High Temp Alarm
- Power Supply : 220 volts, single phase AC supply.
VERTICAL SPLIT TUBE FURNACE (1700 /1400 / 1200 ºC)
VERTICAL SPLIT TUBE FURNACE (1700 /1400 / 1200 ºC)
VERTICAL SPLIT TUBE FURNACE (1700 /1400 / 1200 ºC)
MAKE: CITY INSTRUMENTS
An ISO / CE / NSIC / MSME / GEM /Trade Mark / IEC /Certified Company
Technical Specifications:
- Model: CIVSTF (1700Prog. /1400Prog. /1200Prog.)
- Maximum Temp. : (1700°C/1400°C/1200°C)
- Working Temp. : (1600°C/1350°C/1150°C)
- Temp. Accuracy : ± 1ºC
- Heating Elements : Molybdenum Disilicide (MoSi2) / Silicon Carbide / KANTHAL “A1" Wire
- Tube Size : as per customer require standard 60x65x1200mm Quds, 58x65x1200mm (alumina)
- Hot zone (200 to 250 to 300mm) standard other with as per customer required hedry zone.
- Power Supply : 220 Volts, single phase AC supply.
- all accessories attachment as per customer required vacuum pump, quarts tube , alumina tube, high purity alumina tube (99.8%), chiller , MFC all tube of gases. vacuum thought rotary or refusion pump up to 10-4 bar rotation of tube, vertical, horizontal, all model and attachment

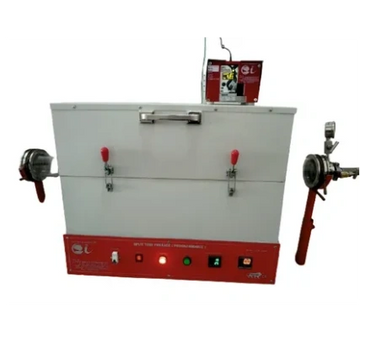

SPLIT TUBE FURNACE (1700 /1400 /1200 ºC)
VERTICAL SPLIT TUBE FURNACE (1700 /1400 / 1200 ºC)
SPLIT TUBE FURNACE (1700 /1400 /1200 ºC)
MAKE: CITY INSTRUMENTS
An ISO / CE / NSIC / MSME / GEM /Trade Mark / IEC /Certified Company
Technical Specifications:
- Model: CISTF (1700Prog. /1400Prog. /1200Prog.)
- Maximum Temp. : (1700°C/1400°C/1200°C)
- Working Temp. : (1600°C/1350°C/1150°C)
- Temp. Accuracy : ± 1ºC
- Heating Elements : Molybdenum Disilicide (MoSi2) / Silicon Carbide / KANTHAL “A1" Wire
- Tube Size : as per customer require standard 60x65x1200mm Quds, 58x65x1200mm (alumina)
- Hot zone (200 to 250 to 300mm) standard other with as per customer required hedry zone.
- Power Supply : 220 Volts, single phase AC supply.
- all accessories attachment as per customer required vacuum pump, quarts tube , alumina tube, high purity alumina tube (99.8%), chiller , MFC all tube of gases. vacuum thought rotary or refusion pump up to 10-4 bar rotation of tube, vertical, horizontal, all model and attachment
OUR PRODUCT

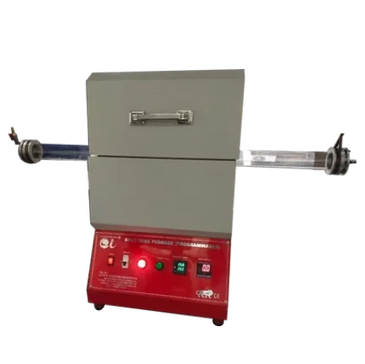

TUBE FURNACE (1700 /1400 / 1200ºC)
TUBE FURNACE (1700 /1400 / 1200ºC)
TUBE FURNACE (1700 /1400 / 1200ºC)
MAKE: CITY INSTRUMENTS
An ISO / CE / NSIC / MSME / GEM /Trade Mark / IEC /Certified Company
Technical Specifications:
- Model: CITF (1700Prog. /1400Prog. /1200Prog.)
- Maximum Temp. : (1700°C/1400°C/1200°C)
- Working Temp. : (1600°C/1350°C/1150°C)
- Temp. Accuracy : ± 1ºC
- Heating Elements : Molybdenum Disilicide (MoSi2) / Silicon Carbide / KANTHAL “A1" Wire
- Tube Size : as per customer require standard 60x65x1200mm Quds, 58x65x1200mm (alumina)
- Hot zone (200 to 250 to 300mm) standard other with as per customer required hedry zone.
- Power Supply : 220 Volts, single phase AC supply.
- all accessories attachment as per customer required vacuum pump, quarts tube , alumina tube, high purity alumina tube (99.8%), chiller , MFC all tube of gases. vacuum thought rotary or refusion pump up to 10-4 bar rotation of tube, vertical, horizontal, all model and attachment

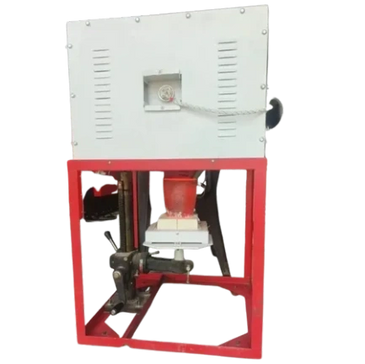

BOTTOM LOADING FURNACE (1500 ºC)
TUBE FURNACE (1700 /1400 / 1200ºC)
TUBE FURNACE (1700 /1400 / 1200ºC)
MAKE: CITY INSTRUMENTS
An ISO / CE / NSIC / MSME / GEM /Trade Mark / IEC /Certified Company
Technical Specifications:
- Model: CIBLF (1500°)
- Maximum temp.: 1500°C
- Working temp. 1400°C
- Heating elements: Silicon Carbide Heating Element placed on two sides are easily replaceable.
- Insulation: High Density Ceramic insulation
- Construction: The furnace has opening at the top and bottom. The bottom lid is closed by Motorized lifting, the crucible with the sample can be lifted for heating and lowered by push of a bottom (Motorized)
- Control Panel: Placed on the side of the furnace with all components.
- Temp. Programmer: PID programmer having minimum 1 programs x 16 segments (ramp/soak.)
- Power control: SCR Unit ( Phase angle thyristor )
- Melting capacity: 2-3 kg (aluminum)
- Power supply : 220 volts single phase
CVD SETUP
TUBE FURNACE (1700 /1400 / 1200ºC)
CVD SETUP
MAKE: CITY INSTRUMENTS
An ISO / CE / NSIC / MSME / GEM /Trade Mark / IEC /Certified Company
Technical Specifications:
Sidable tube furnace with dia 60mm x length 1200mm quartz tube and flange. Maximum temperature up to 1200/ 1400. One pairof sliding rail is installed on bottom of furnace. The furnace can move by motor form one side to the other, to achiever max. Heating and cooling rate up to 100/min. for the fastest heating , you can pre- heat furnace to the desired temperature, then move furnace to sample side, for the fastest cooling, youi may move furnace to another sie after heating sample. It is ideal funace for rapid thermal processing at lowest cost
OUR PRODUCT
ROCKING TUBE FURNACE
PHOTO CHEMICAL REACTOR WITH CHILLER
EIGHT ZONE TUBE FURNACE
MAKE: CITY INSTRUMENTS
An ISO / CE / NSIC / MSME / GEM /Trade Mark / IEC /Certified Company
Technical Specifications:
- Maximum temp. 1150°C
- Working Temp. 1000°C
- Temp. accuracy: ±1ºC
- Heating Elements : kanthal - A1 wire , coil type wound on the tube.
- Tube tube diameter : alumina
- External Diameter of furnace: 250mm
- Overall Length: 400
- Hot zone length: 200mm
- Insulation: Ceramic fiber
- Temp. control: microprocessor based Programmable (1 prog. X 16 segments) Temp. Controller, with ramp and soak segments. Dual display of set & Actual temp. with soft touch keys. With thermocouple break protections & cold junction compensation.
- Sensor: Cr/ AL
- Safety: over current and short circuit protection, Thermocouple break alarm. High temp. alarm.
- Power control: SSR Unit
- Power supply: 220V , 50 hz single phase ac only
EIGHT ZONE TUBE FURNACE
PHOTO CHEMICAL REACTOR WITH CHILLER
EIGHT ZONE TUBE FURNACE
MAKE: CITY INSTRUMENTS
An ISO / CE / NSIC / MSME / GEM /Trade Mark / IEC /Certified Company
Technical Specifications:
ZONE 1: -
Maximum Temp.: 1200º C Working Temp. : 1100º C
Hot Zone: 300 mm
Temp. Accuracy : ±1ºC
ZONE 2: -
Maximum Temp.: 1200º C Working Temp. : 1100º C
Hot Zone: 300 mm
Temp. Accuracy : ±1ºC
ZONE 3: -
Maximum Temp.: 1200º C Working Temp. : 1100º C
Hot Zone: 300 mm
Temp. Accuracy : ±1ºC
ZONE 4: -
Maximum Temp.: 1200º C Working Temp. : 1100º C
Hot Zone: 300 mm
Temp. Accuracy : ±1ºC
ZONE 5: -
Maximum Temp.: 1200º C Working Temp. : 1100º C
Hot Zone: 300 mm
Temp. Accuracy : ±1ºC
ZONE 6: -
Maximum Temp.: 1200º C Working Temp. : 1100º C
Hot Zone: 300 mm
Temp. Accuracy : ±1ºC
ZONE 7: -
Maximum Temp.: 1200º C Working Temp. : 1100º C
Hot Zone: 300 mm
Temp. Accuracy : ±1ºC
ZONE 8: -
Maximum Temp.: 1200º C Working Temp. : 1100º C
Hot Zone: 300 mm
Temp. Accuracy : ±1ºC
Heating Elements: Kanthal – A1wire, Coil type with end connection Insulation : Ceramic Fibre Construction :Double walled with air insulation on the outer side for Minimal Skin Temp. Body : Made of mild steel duly Powder Coated
Tube material : Quarts tube.
Tube Size: Inner Dia. =60mm, Outer Dia. =65 Overall length=1200mm. HOT ZONE 300MM
Power Control: SSR unit,.
Temp. Control: Temperature of the furnace is controlled by microprocessor based Programmable controller (1x14 segment, dwell, hold, ramp, timer all with Also provide calibration report of controller by NRL lab if requirement by costumer, with soft touch keypad and dual display of process & set temperature. The overshoot & undershoot of temp. Variation is drastically reduced compared to normal ON / OFF type-controlled furnace. Sensor :K TYPE
Power Supply: 220 volts, single phase AC supply.
Safety: Over current and Short Circuit Protection Thermocouple break alarm. High Temp. Alarm. With
Tube Material: Quarts-Tube Size: Inner Dia. = 60 mm Cuter Dia.=65 / Overall length = 1200 mm With Ends of the tube having Aluminum couplers with cooling attachment for purging of gases with two oaring

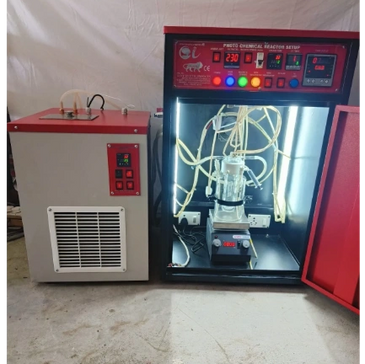

PHOTO CHEMICAL REACTOR WITH CHILLER
PHOTO CHEMICAL REACTOR WITH CHILLER
PHOTO CHEMICAL REACTOR WITH CHILLER
MAKE: CITY INSTRUMENTS
An ISO / CE / NSIC / MSME / GEM /Trade Mark / IEC /Certified Company
Technical Specifications:
- Model : CIP-17/Prog.
1 -Quarts photo reactor system for gas & dyes studies 50 -250 ml, QUANTITY-ONE
2- Central quarts jacket Reactor tube for Lamp & cooling water with hose 8 to 10 mm Quantity –one
3-LAMP 450 WATTS MEDIUM PRESSURE (UV SPECTRUM)
4.LAMP 250 WATTS HIGH PRESSURE (VIS SPECTRUM
5.LAMP 250 WATTS MANUAL NON-DIGITAL POWER SUPPLY PRESSURE (UV SPECTRUM
6. MICRO DU LAYER PU COATED SAFTY CABINATE WITH EXHAUST FAN & LED
7. Hot plate Magnetic stirrer RPM Digital 100-1500rpm with 0-220 degree
8. Supporting stand with mounting plate
9. Silicon Teflon sampling Arrangement with syringe
TECHNICAL DETAILS: -
PHOTO CATALYTIC REACTOR Photo Catalyst Mild Steel Body Dully Power coated with Double jacketed with 3 port to insert catalyst, Sample draw and one for l use like temperature sensor etc. Outer jacketed made of borosilicate glass extra cooling jacket for water circulator with two port inlet and outlet port made of quartz inner jacketed quartz immersion well Capacity – 300 ml Approx. max, Also we have different capacity from 250 ml LIGHT SOURCE UV Lamp specially designed for photo catalyst Reactor Different wage of lamp available such as, 450, what you can chose any one or all, the price manned is for one lamp Power Supply for UV Lamp source for 450, what sensor and safety device. Power supply will be used separate for each lamp, you need to buy Lamp and power supply together. But if you need to change lamp if not working then you can buy only lamp not power supply. Automat on/off UV Lamp Timer (Max capacity of mint is 999 minutes) Inbuilt 2 Electrical Connection (16 Amps ports) Silicon. Safety LED L& N 22 MM indication Xenon Lamp and Power Supply UV PROTECTED CABINET Outer Metal Shell (Safety Cabinet) Safety Cabinet Digital temperature display (@ four sample point which is Reason temperature, Cabinet chamber temperature, Water inlet and outlet temperature) Digital Volt meter Clamp based in-build reactor Holding Stand Cooling Exhaust Fan LED panel Lamp for cabinet (Auto map Switching) Auto map UV light or Rays
protection system UV light protected Goggles Auto map on/off UV Lamp Timer (Max capacity of U v timer is 999 minutes) In built 2 Electrical Connection (16 Amps ports)) for water inlet and outlet. Safety LED’s indicator system Hydraulic Flings for Water Circulator (Inlet & Outlet)
MAGNETIC STIRRER Specially designed for Photo-catalyst Reactor, Digital Speed Display, provided, Speed variable up to 1500 WITH TEMPRATURE
With chiller
CHILLER Make- City (ISO 9001 – 2015 CERTIFIED CO). Features: Convenient to use on table or floor. External Circulation function with powerful circulation pump with contact parts of stainless steel / brass. Control the temp. with PID temp. controller. Excellent safety with heater cuts off on overheating Separate power switches for both functions of Cooling and Circulation of liquid. Low noise level for the operation in a sealed space.
Bath volume (Lt.) -12 Lt.
Set Range- 10 ºC Ambient
Accuracy ±0.2ºC
Resolution-0.1ºC
Controller- PID Microprocessor
Controller
Bath-Stainless steel SS304
External-Mild Steel duly Powder Coated
Insulation-Polyurethane foam
Refrigerant-CFC Free
Refrigerator(watt)-400W
Electric requirement &power consumption-220V AC 50Hz, Single phase
OUR PRODUCT
STARRING OVEN WITH HEATING

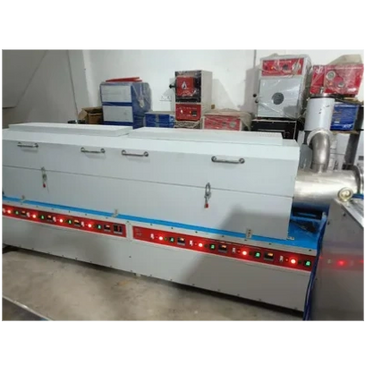

INDUSTRIAL THREE ZONE TUBE FURNACE
STARRING OVEN WITH HEATING
MAKE: CITY INSTRUMENTS
An ISO / CE / NSIC / MSME / GEM /Trade Mark / IEC /Certified Company
Technical Specifications:
Maximum temperature: up to 250 C
Working Temp. Range: up to 250ºC. Temp. Accuracy: ± 1ºC.
In this system there is one path of circulating Hot Air in- between the inner chamber and insulation. Forced Air Moved by the motorized blower is called PERFECT SYSTEM. It results minimum temperature variation at any point in working space.
Temperature controlled by based Microprocessor PID Digital Indicator Cum Controller from 50˚C to 250˚C with a sensitivity of ± 1˚C
Working chamber is made of SS 304 steel and outside made of Mild Steel finished with attractive powder coating with wire mesh nickel plated trays (2No.). To work on 220/230 Volts A.C.
OUTER SIZE
18” x 18” x 18” Inch.
note: size as per buyer requirement

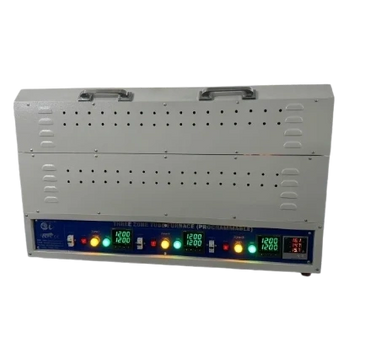

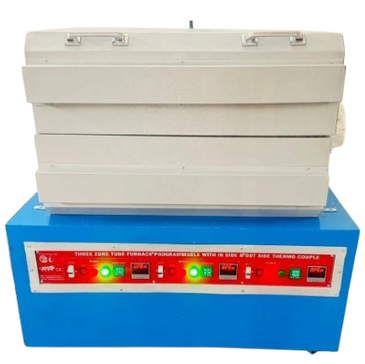

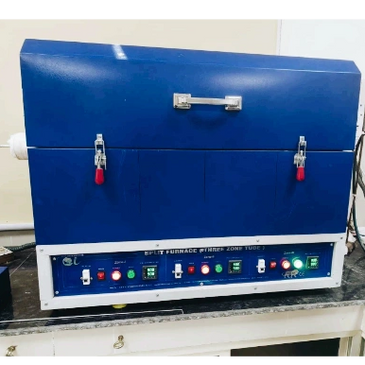

THREE ZONE TUBE FURNACE
INDUSTRIAL THREE ZONE TUBE FURNACE
STARRING OVEN WITH HEATING
MAKE: CITY INSTRUMENTS
An ISO / CE / NSIC / MSME / GEM /Trade Mark / IEC /Certified Company
Technical Specifications: Maximum Temp.:
Zone 1 = 1200 ºC= (Work. Temp. = 1150 ºC, Heating Elements Silicon Carbide Rods with R type sensor)
Zone 2 = 1200 ºC = (Work. Temp. = 1150 ºC Heating elements Kanthal – A1 wire, Coil type with end connections with k type sensor)
Zone 3 = 1200 ºC = (Work. Temp. = 1150 ºC Heating elements Kanthal – A1 wire, Coil type with end connections with k type sensor.
Each Hot Zone Size = 200 mm
Temp. Accuracy: ± 1ºC
Inner Chamber:Ceramic Refractory / Board
Insulation: Ceramic Fibre
Construction: Split Type (Horizontal)
Body: Made of mild steel duly Powder Coated
Max. Tube Size to be accommodated: Inner Dia. = 60 Outer = 65 mm
Power Control: SSR unit,
Temp. Control: Microprocessor based PID Digital Set Point Controller individual for each Zone. Dual display of Set & Actual Temp. with soft touch keys.
With Thermocouple break protection & Cold junction compensation.
CE mark to meet EMC regulations
Sensor: Cr / Al for each Zone
Safety: Over current and Short Circuit Protection.
Thermocouple break alarm High Temp. alarm
Power Supply: 220 volts, single phase AC supply.
Safety: Over current and Short Circuit Protection Thermocouple break alarm. High Temp. alarm.
INDUSTRIAL THREE ZONE TUBE FURNACE
INDUSTRIAL THREE ZONE TUBE FURNACE
INDUSTRIAL THREE ZONE TUBE FURNACE
MAKE: CITY INSTRUMENTS
An ISO / CE / NSIC / MSME / GEM /Trade Mark / IEC /Certified Company
Technical Specifications: Maximum Temp.:
Zone 1 = 1400 ºC= (Work. Temp. = 1350 ºC, Heating Elements Silicon Carbide Rods with R type sensor)
Zone 2 = 1400 ºC = (Work. Temp. = 1350 ºC Heating Elements Silicon
Carbide Rods with R type sensor
Zone 3 = 1400 ºC = (Work. Temp. = 1350 ºC Heating elements Silicon Carbide Rods with R type sensor
Each Hot Zone Size = 200 mm
Temp. Accuracy: ± 1ºC
Inner Chamber: Ceramic: Ceramic Refractory / Board
Insulation: Ceramic Fibre
Construction: Split Type (Horizontal)
Body: Made of mild steel duly Powder Coated
Max. Tube Size to be accommodated: Inner Dia. = 200mm,Outer = 220 mm, Length: 1200mm
Power Control: : (Phase Angle Thyristor) with current limit and soft start facility and Step-Down Air-Cooled Transformer ,
Temp. Control: Microprocessor based PID Digital Set Point Controller individual for each Zone. Dual display of Set & Actual Temp. with soft touch keys.
With Thermocouple break protection & Cold junction compensation.
CE mark to meet EMC regulations
Sensor: Cr / Al for each Zone
Safety: Over current and Short Circuit Protection.
Thermocouple break alarm High Temp. alarm
Power Supply: 220 volts, single phase AC supply.
Safety: Over current and Short Circuit Protection Thermocouple break alarm. High Temp. alarm.
